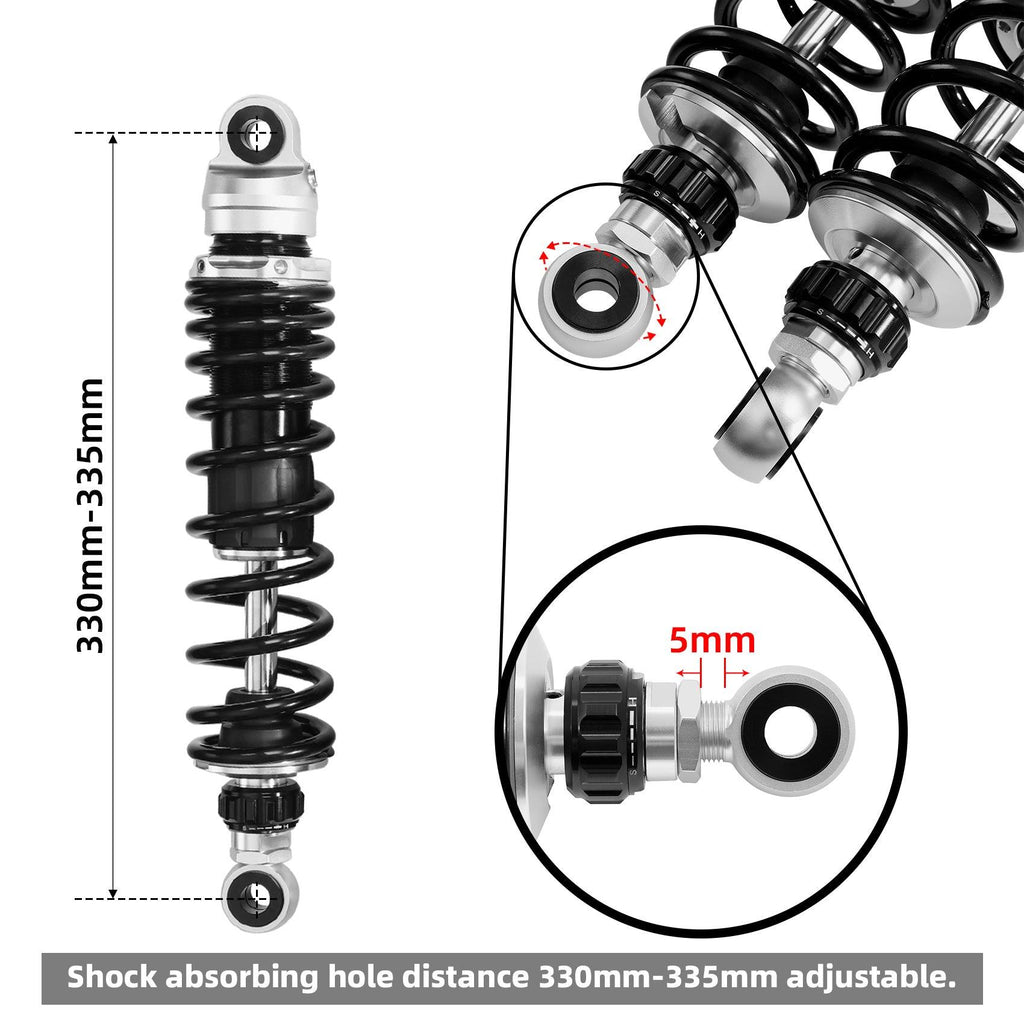

Shock absorbing hole distance 330 mm-335 mm adjustable.
Compression Damping 26 levels adjustable.
Rebound Damping 43 levels adjustable.
Rotating the reservoir can adjust the angle of the connector.
Using oil-free bearings on upper and lower fixed positions.
Preload setting 50mm adjustable height on both shocks
14mm diameter shock absorber.
Buffer rubber rings provide improved plush ride quality, control, and resistance to bottoming out.
No tools are required for compression and rebound damping adjustments, Easy to install and calibrate
The reservoir feature a black hard-coat finish with stainless steel lines for performance style.
Damping Setting Reference: First, turn the adjuster counterclockwise until it stops (this is position 0), then count the clicks while turning the adjuster clockwise to the desired setting.
Preload settings can be adjusted to suit riding preferences based on rider, passenger and luggage weight. The following table is a reference for adjustment benchmark, you can make appropriate adjustments according to your weight and driving habits.
Compression Damping
Solo rider
Solo rider with luggage
Solo rider with passenger
Solo rider with passenger and luggage
Without Tourpak
15
13
8
7
With Tourpak
13
8
6
5
Rebound Damping
Solo rider
Solo rider with luggage
Solo rider with passenger
Solo rider with passenger and luggage
Without Tourpak
13
11
5
4
With Tourpak
10
5
3
2
Fitment
Fits '14-later Touring models (except FLHTKL, FLHTCUL, and ’23-later FLHXSE and FLTRXSE).
