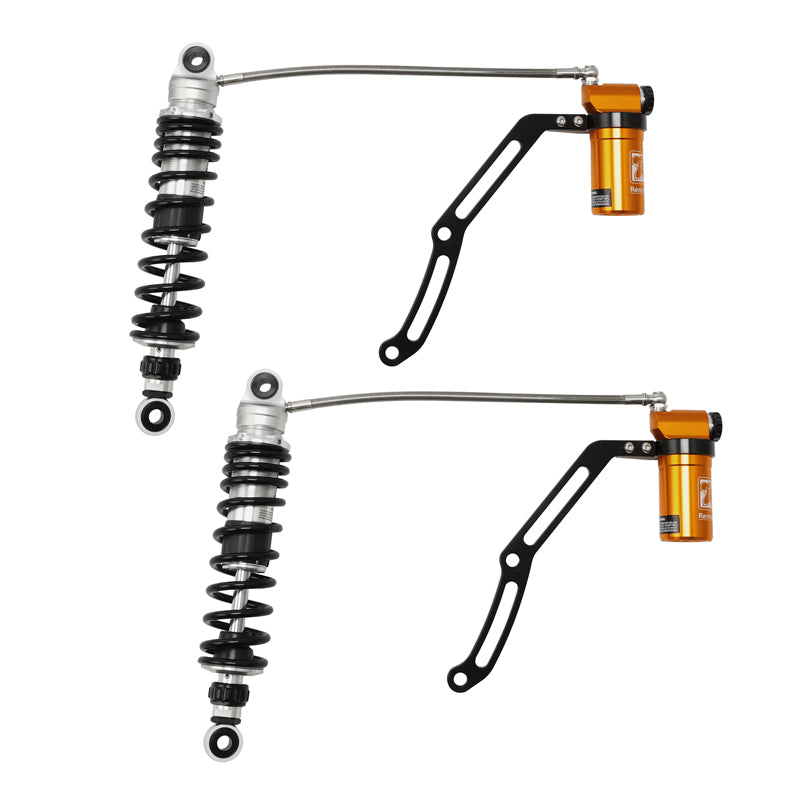

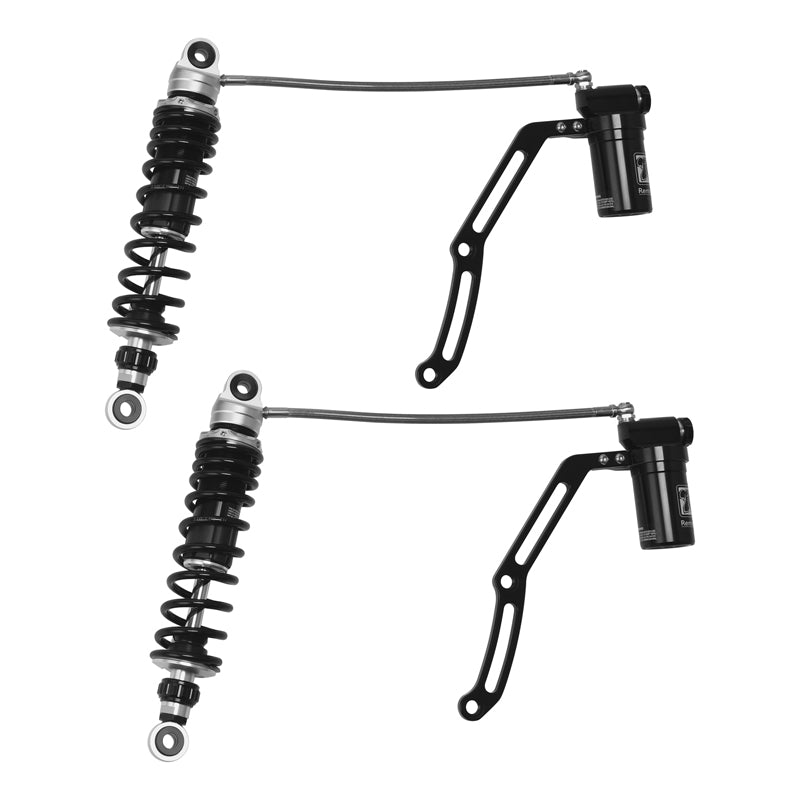

TCMT Remote Reservoir Rear Suspension Shocks Fit For Harley Touring '23.5-'25
Position: Rear

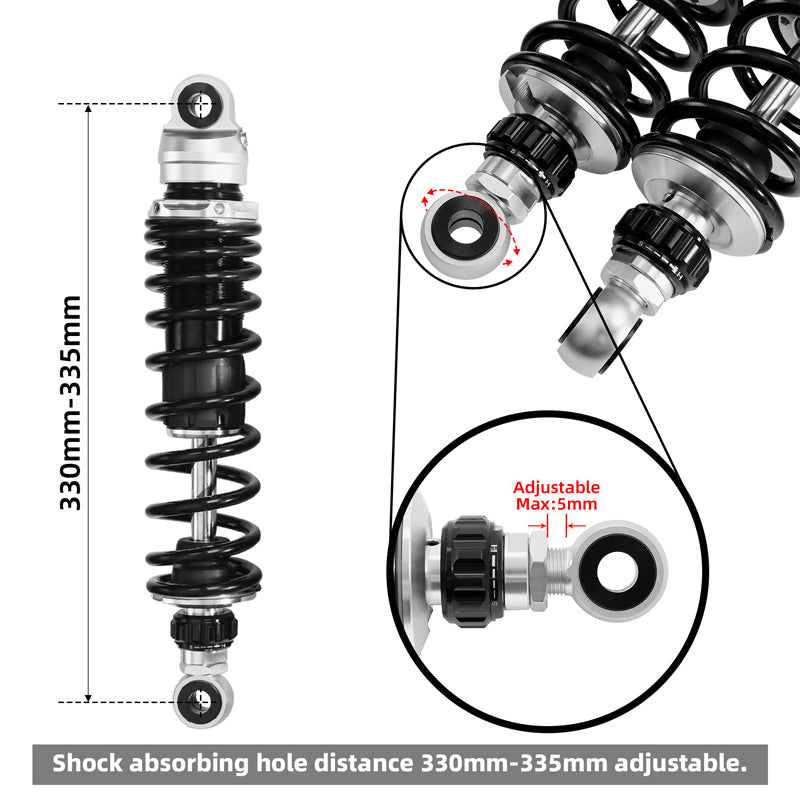

Shock absorbing hole distance 330 mm-335 mm adjustable.

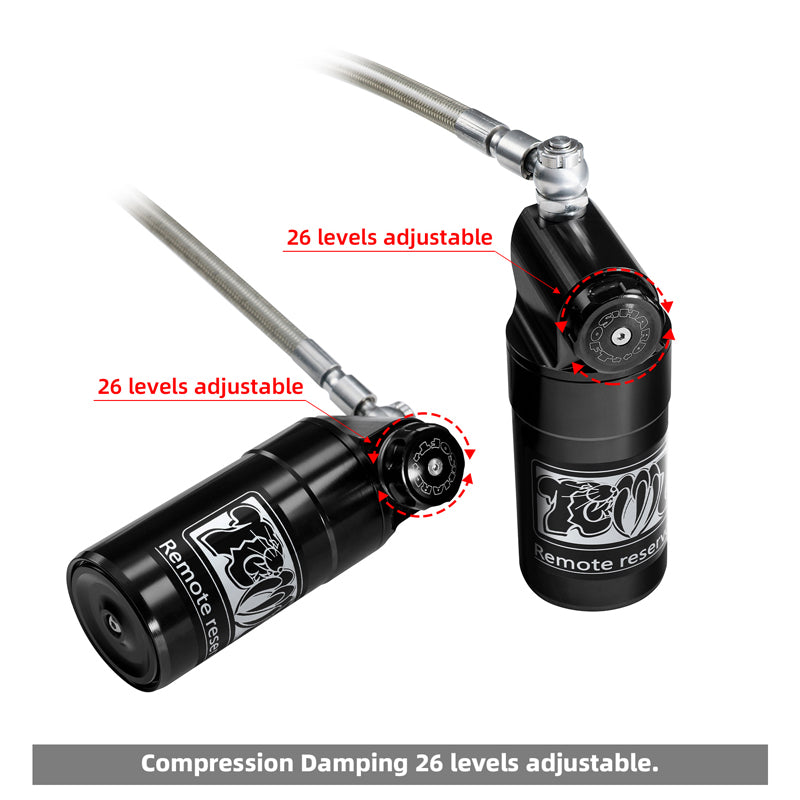

Compression Damping 26 levels adjustable.

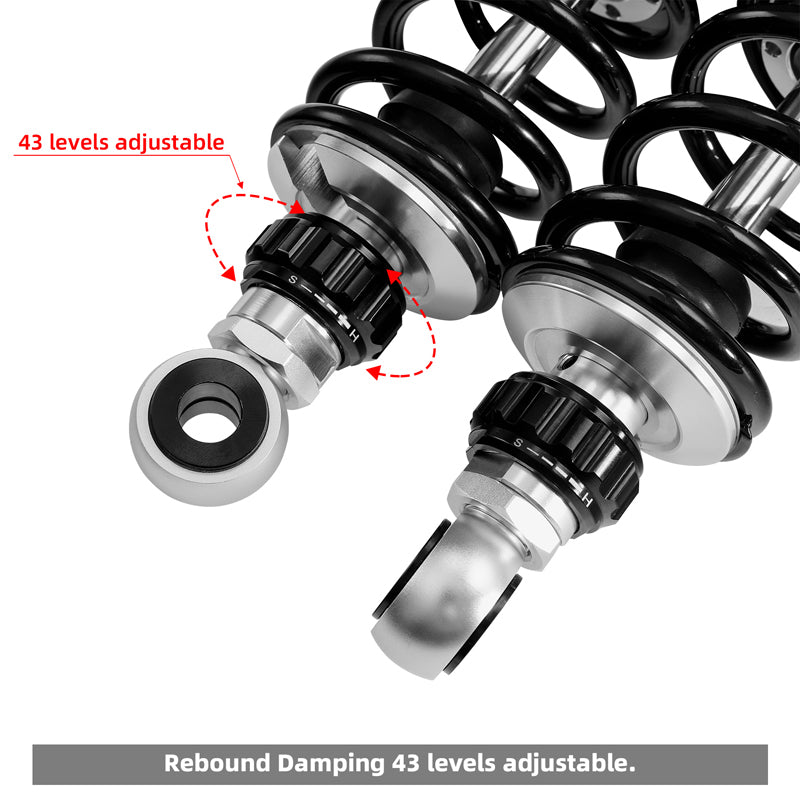

Rebound Damping 43 levels adjustable.

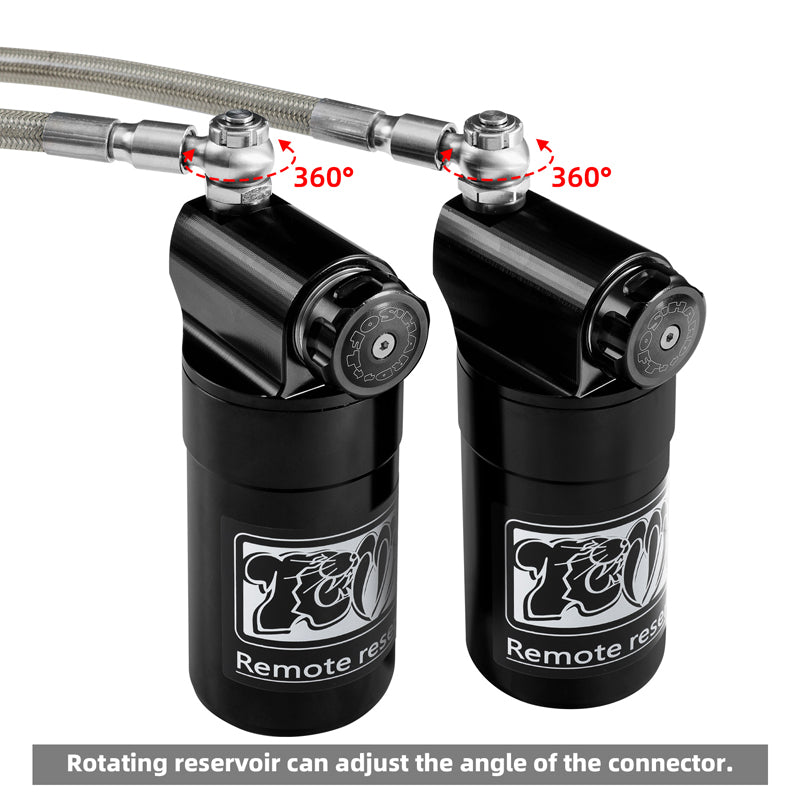

Rotating the reservoir can adjust the angle of the connector.

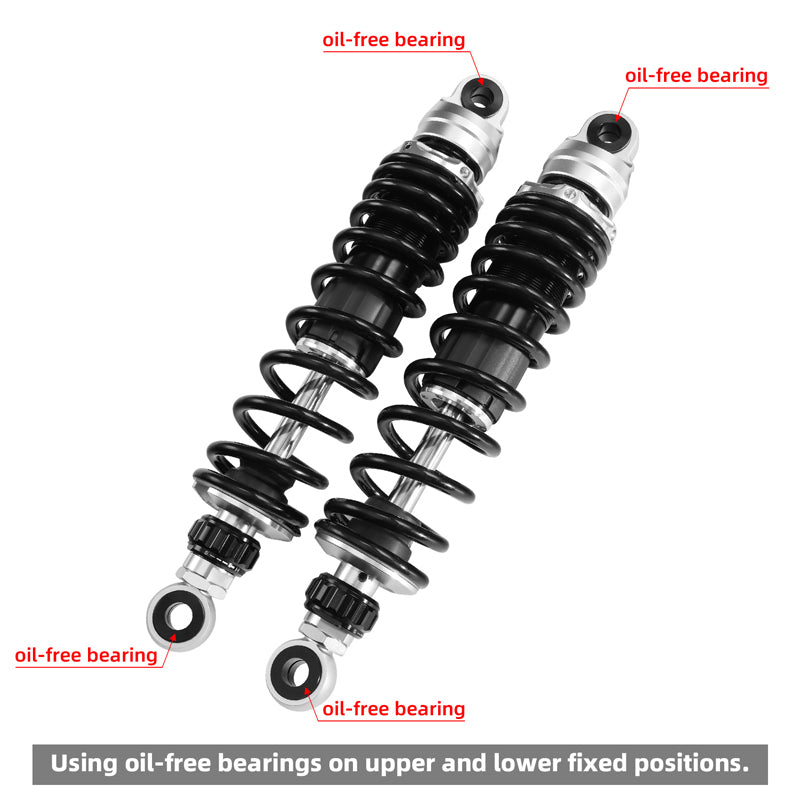

Using oil-free bearings on upper and lower fixed positions.

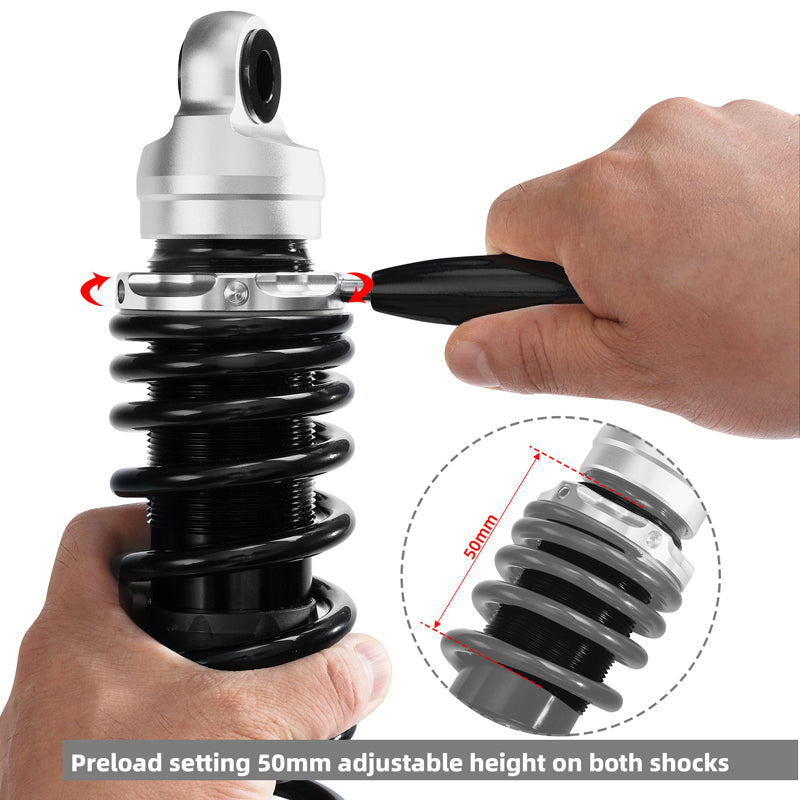

Preload setting 50mm adjustable height on both shocks

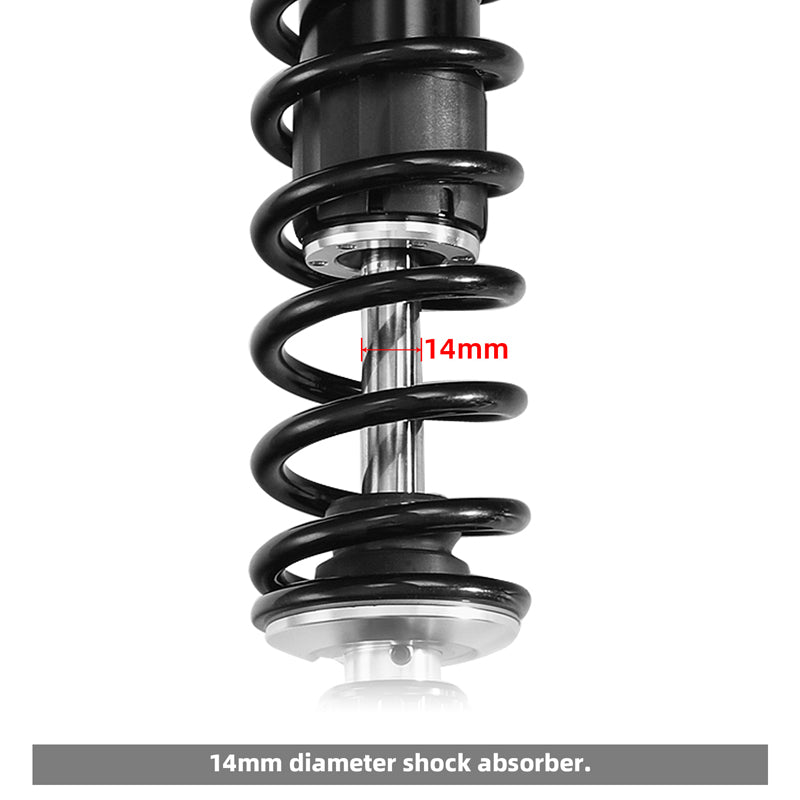

Standard 13" Height. 14mm Diameter Shock Absorber.
Buffer rubber rings provide improved plush ride quality, control, and resistance to bottoming out.
No tools are required for compression and rebound damping adjustments, It is Easy to install and calibrate
The reservoir features a black hard-coat finish with stainless steel lines for performance style.
Damping Setting Reference: First, turn the adjuster counterclockwise until it stops (this is position 0), then count the clicks while turning the adjuster clockwise to the desired setting.
Preload settings can be adjusted to suit riding preferences based on rider, passenger, and luggage weight. The following table is a reference for adjustment benchmark， you can make appropriate adjustments according to your weight and driving habits.
|
Compression Damping |
||||
|
|
Solo rider |
The solo rider with luggage |
Solo rider with passenger |
Solo rider with passenger and luggage |
|
Without Trunk |
15 |
13 |
8 |
7 |
|
With Trunk |
13 |
8 |
6 |
5 |
|
Rebound Damping |
||||
|
|
Solo rider |
The solo rider with luggage |
Solo rider with passenger |
Solo rider with passenger and luggage |
|
Without Trunk |
13 |
11 |
5 |
4 |
|
With Trunk |
10 |
5 |
3 |
2 |

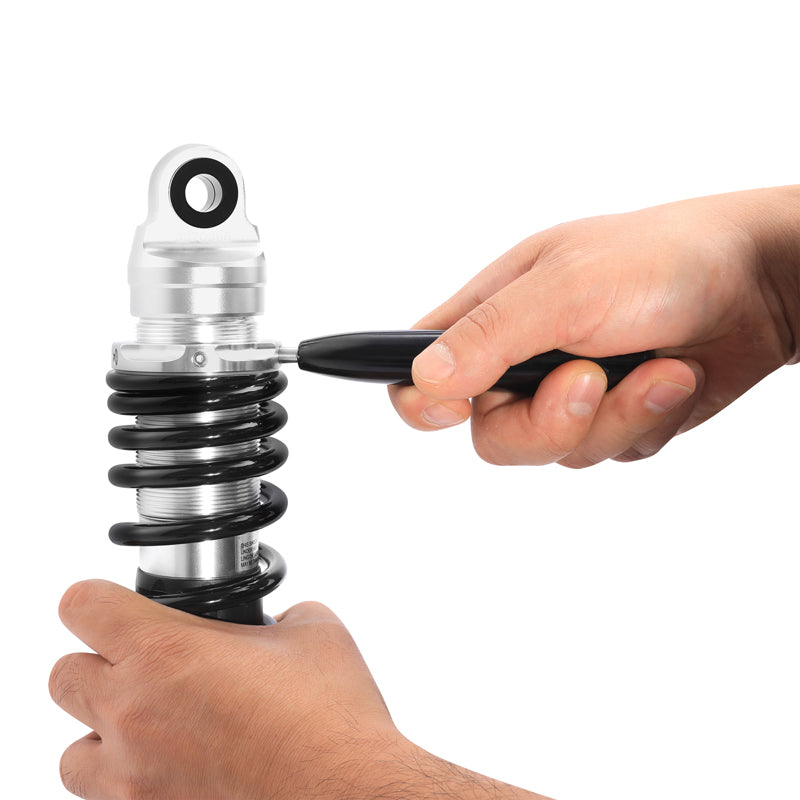

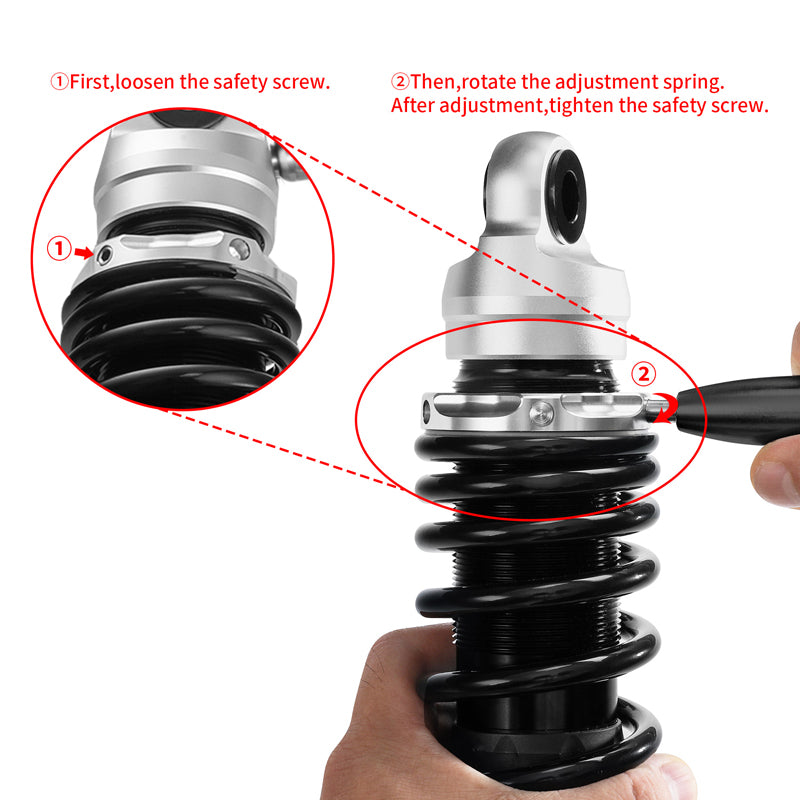

When adjusting the preload setting, it is best to keep the motorcycle suspended. Rider and passenger also need to leave the seat. Then follow the instructions in the diagram, loosen the safety screw first, then rotate the adjustment spring, and tighten the safety screw after adjustment.
Fit For '23-later FLHXSE and FLTRXSE, '24-later FLHX, FLTRX, FLTRXSTSE, and '25-later FLHXU models.
Fit For Harley CVO Road Glide FLTRXSE 2023-2025
Fit For Harley CVO Street Glide FLHXSE 2023-2025
Fit For Harley CVO Road Glide ST FLTRXSTSE 2024-2025
Fit For Harley Road Glide FLTRX 2024-2025
Fit For Harley Street Glide FLHX 2024-2025
Fit For Harley Street Glide Ultra FLHXU 2025

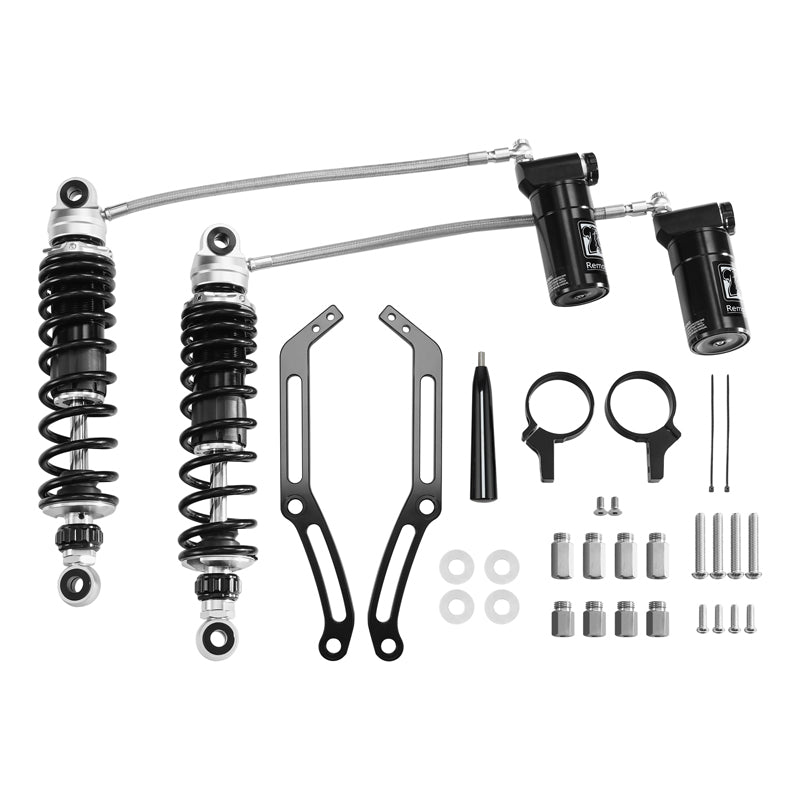

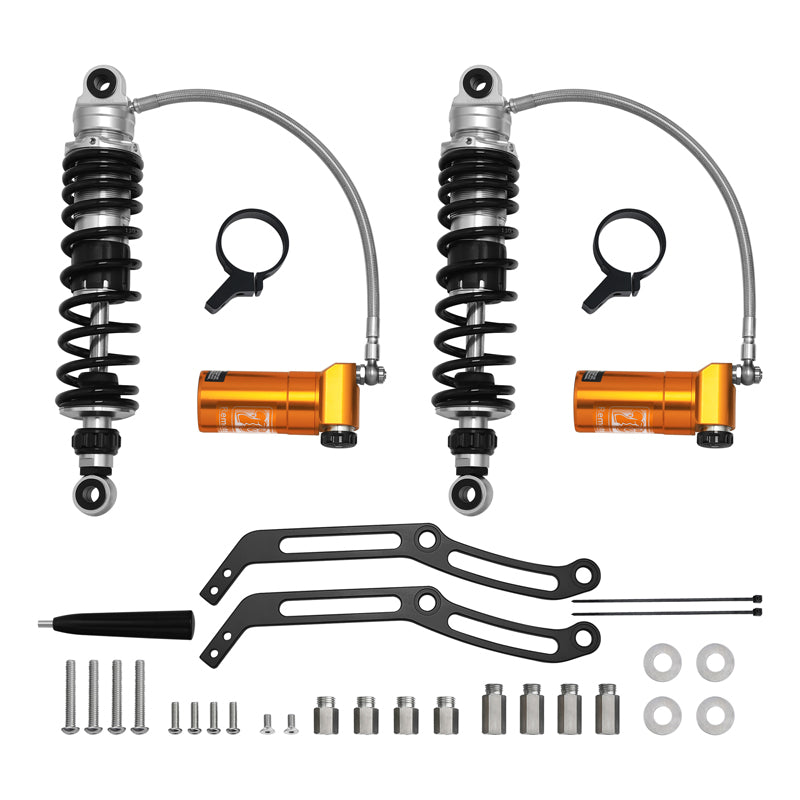

1 Set of Rear Shocks(It is expected to be available in mid-October)
